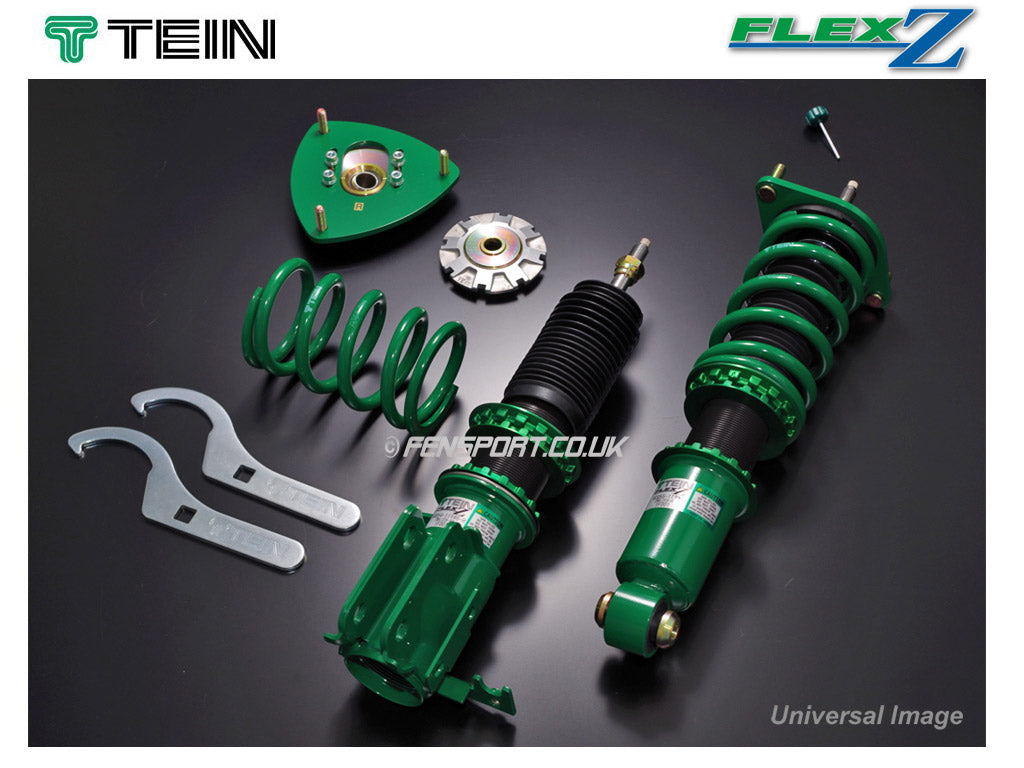

Toyota CHR - Tein Flex Z Coilover Kit
Flex Z inherits all the features and quality of the famous Street Flex design, but with a new lower price structure.
Flex Z Features include:
- Incredibly Low Price & Made in Yokohama!
- Twin-Tube System for Comfortable Ride on Streets!
- Full-Length System for Ride Height Adjustment w/ Minimal Change in Ride!
- Damping Force Adjustable to Change Ride to Desired Settings!
- Compatible with EDFC Series to enable In-Car Damping Force Adjustment!
- Upper Mounts Included for Easy Installation!
- Highly Durable & Reliable!
- Thoroughgoing Rust-Proofing!
- Highly-Rigid Bracket & Shell Case!
- Smooth Ride Height Adjustment & One-of-A-Kind Adjusting Wrench!
- No-Sag Springs!
- High-Spec Damper Oil!
- Replacement Service to Bring Used Shock Absorbers Back to Life!
CHR > Specific Features include:
- 4 x Height adjustable shock absorbers
- 4 x Coil springs
- Damping rate: 16 way top adjustable
- Ride height adjustment range: 1.2 4WD Front -80 to -16mm, Rear -91 to -35mm. 1.8 Hybrid Front -70 to -6mm, Rear -55 to -23
- Spring Rates: Front 5kg, Rear 5kg
- Front Mounts: Reinforced rubber mounts included.
- Rear Mounts: Reinforced rubber mounts included.
EDFC Compatible? Yes please purchase EDFCII, EDFC Active or EDFC Active Pro separately - No other parts required.
- Black Friday 23
- Toyota C-HR 1.2 Turbo up to 2021
- Toyota C-HR 1.8 Hybrid up to 2021
- To adjust damping force on the front the shock absorber needs to be removed we advise the use of EDFC
- Fitment is not yet confirmed for 1.2 Turbo Front Wheel Drive
